Self-Lubricating 200# P20 Steel Graphite Insert Wear Plate / Steel Oilless Wear Strip

Product Description:

Self-Lubricating 200# P20 Oil-Retaining Steel Bearing Plate is a high-end sliding component designed for high-performance mechanical equipment. Made of advanced graphite inlay technology and high-quality P20 steel, it has excellent self-lubricating properties and extremely low friction coefficient, making it very suitable for scenarios that require long-term high-load operation and are difficult to maintain.

Steel Base Graphite Insert Wear Plate

Steel Graphite Insert Wear Plate / Steel Oilless Wear Strip

Steel Wear Plate Graphite Insert Oilless Wear Strip
SW Wear Plate
300 Max Temp °C
200 N/mm² Load
Product Overview

This steel graphite insert wear plate features a high-strength steel substrate with graphite plugs embedded in the sliding surface. The steel backing provides exceptional load capacity up to 200 N/mm² and dimensional stability under heavy loads. Graphite inserts deliver continuous maintenance-free lubrication, eliminating the need for external oil or grease. This wear plate is designed for guide and sliding applications where high loads and wear resistance are required. Custom dimensions, graphite patterns, and mounting hole configurations available for specific equipment requirements.

Steel Graphite Insert Wear Plate
Steel Substrate Strength High-strength steel backing provides exceptional load capacity and dimensional stability under heavy loads.
Graphite Insert Lubrication Graphite plugs embedded in the sliding surface deliver continuous maintenance-free lubrication.
Wear & Friction Resistance Steel substrate combined with graphite lubrication provides excellent wear resistance and low friction.
Customizable Configuration Dimensions, graphite pattern, and mounting hole configurations adjustable to meet specific application requirements.
Core Advantages
  • Steel substrate provides exceptional load capacity up to 200 N/mm²
  • Graphite inserts eliminate lubrication maintenance in operation
  • Steel construction offers high dimensional stability under load
  • Wear plate design for guide and sliding applications
  • Custom dimensions and mounting configurations available
Product Characteristics
  • Material: High-strength steel with graphite inserts
  • Substrate: Steel backing with machined graphite pockets
  • Graphite coverage: 18-22% on sliding surface
  • Thickness tolerance: ISO h9 at 20°C reference
  • Operating temperature: -40°C to 300°C continuous
Application Scenarios
Machine tool guide wear plates Heavy equipment slide surfaces Press tool sliding wear strips Automation equipment guide plates Steel mill guide surfaces Construction equipment wear plates Industrial slide guide systems Custom wear plate applications
Customization Available Steel graphite insert wear plates can be customized for specific applications. Options include custom length, width, thickness, graphite plug pattern, mounting hole locations, and surface finish. Engineering consultation available for non-standard configurations.
L x W: Custom Thickness: 6-50mm Mounting: Custom holes
Frequently Asked Questions

Steel offers significantly higher load capacity and better dimensional stability than bronze. Steel wear plates are ideal for heavy-duty applications where high loads and impact resistance are required.

Graphite inserts are mechanically retained in precision-machined pockets within the steel surface. The inserts are pressed in securely, ensuring retention during operation.

Yes. Mounting holes can be machined into the wear plate at specified locations. Counterbored, threaded, or through holes available based on application requirements.

Hardened steel with surface hardness of 50-60 HRC and surface finish Ra 0.4-0.8 micrometers. This provides optimal wear life and lubrication film formation.

Replace when surface wear exceeds 0.5mm, when graphite on the sliding surface falls below 12% of original coverage, or when the plate shows signs of deformation or cracking.

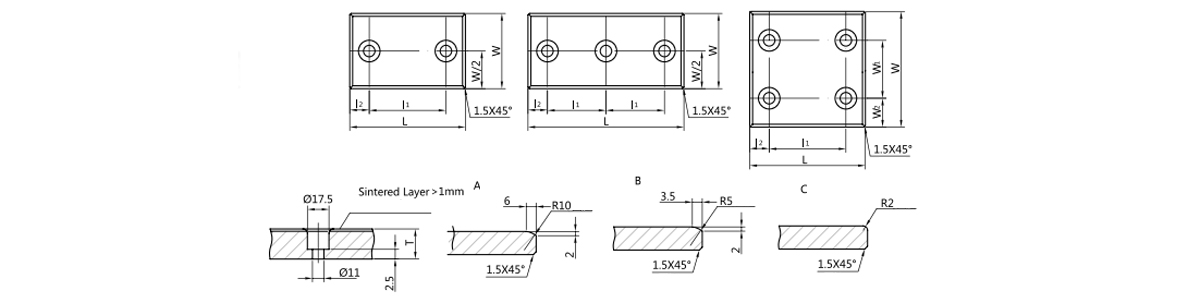

Parts No. Width Length Thickness Mounting holes Pitch Number of
Screw holes
Chamfered
shape
W Tol. L Tol. T Tol.   W1 Tol. W2 L1 Tol. L2
200#P20-2875 28  -0.1
-0.3
75  -0.1
-0.3
20  ±0.01 45  ±0.2 15  C
200#P20-28100 28  100  20  50  25
200#P20-28150 28  150  20  100  25
200#P20-3875 38  75  20  45  15
200#P20-38100 38  100  20  50  25
200#P20-38150 38  150  20  100  25
  200#P20-4875 48  75  20  45  15  B
  200#P20-48100 48  100  20  50  25
  200#P20-48125 48  125  20  100  25
  200#P20-48150 48  150  20  100  25
  200#P20-48200 48  200  20  100  50
  200#P20-48250 48  250  20  45  25
 200#P205875 58  75  20  50  15
  200#P20-58100 58  100  20  75  25
  200#P20-58150 58  150  20  100
  200#P20-7575B 75  75  20  25  25  A
  200#P20-75100B 75  100  20  50  25
  200#P20-75125 75  125  20  75  25
  200#P20-75150 75  150  20  100  25
  200#P20-75200 75  200  20  150  25
  200#P20-75250 75  250  20  100  25
  200#P20-75300 75  300  20  100  50
  200#P20-100100 100  100  20    50  ±0.2 25  50  25
  200#P20-100125 100  125  20  75  25
  200#P20-100150 100  150  20  100  25
  200#P20-100200 100  200  20  150  25
  200#P20-100250 100  250  20  200  25
  200#P20-100300 100  300  20  200  50
  200#P20-125125 125  125  20  37.5  75  25
  200#P20-125150 125  150  20  100  25
  200#P20-125200 125  200  20  150  25
  200#P20-125250 125  250  20  200  25
  200#P20-125300 125  300  20  200  50
  200#P20-150150 150  150  20    100  25  100  25
  200#P20-150200 150  200  20  150  25
  200#P20-150250 150  250  20  200  25
