Product Description:

Wear-Resistant Self-Lubricating Oil-Embedded 200#F Flanged Bearing is a high-performance self-lubricating flange bearing that uses embedded solid lubricating materials (such as graphite, MoS₂, PTFE) and does not require external lubrication. It is suitable for harsh environments such as high temperature, high load, low speed, heavy load, heavy dust, water washing, impact vibration, etc. The product is widely used in many industries such as metallurgy, mining, shipbuilding, wind power generation, injection molding machines, and automobiles to meet diverse needs.

Flanged Self-Lubricating Composite

Flanged Self-lubricating Composite Bushing, Oilless Flanged Bushing

Flanged Configuration Composite Material Oilless Operation
CF Flanged
250 Max Temp °C
180 N/mm² Load
Flanged Self-lubricating Composite Bushing
Product Overview

This flanged self-lubricating composite bushing features an integral flange that provides axial location without additional retaining hardware. The composite material consists of a high-strength backing with a self-lubricating lining material, delivering maintenance-free operation. The flange eliminates the need for separate thrust washers or retaining rings, simplifying assembly. The composite construction offers high load capacity up to 180 N/mm² with excellent wear resistance. Custom flange diameters, thicknesses, and dimensions available for specific application requirements.

Integral Flange Design Flange provides axial location without additional retaining hardware. Eliminates separate thrust washers and retaining rings.
Self-Lubricating Composite Composite material with embedded lubricant delivers maintenance-free operation. No external oil or grease required.
High Load Capacity Composite construction supports loads up to 180 N/mm². Suitable for demanding industrial applications.
Customizable Configuration Flange dimensions, thickness, and bushing sizes adjustable to meet specific application requirements.
Core Advantages
  • Integral flange eliminates separate retaining hardware and simplifies assembly
  • Self-lubricating composite provides maintenance-free operation
  • Flange face supports axial thrust loads without additional components
  • Composite construction offers high load capacity and wear resistance
  • Custom flange dimensions available for specific tooling requirements
Product Characteristics
  • Material: Self-lubricating composite with integral flange
  • Flange configuration: Integral flange at one end
  • Lubrication: Embedded solid lubricant
  • Bore tolerance: ISO H8 at 20°C reference
  • Operating temperature: -40°C to 250°C continuous
Application Scenarios
Automotive suspension bushings Industrial pivot bearings Agricultural equipment linkages Hydraulic cylinder mountings Conveyor system guide bearings Packaging machinery bushings Robotic arm joint bearings Custom flanged bearing applications
Customization Available Flanged composite bushings can be customized for specific applications. Options include custom bore and outer diameters, flange diameter and thickness, overall length, and material grade. Engineering consultation available for non-standard configurations.
ID: 8-120mm Flange OD: Custom Length: Custom
Frequently Asked Questions

A flanged composite bushing provides axial location without additional retaining hardware, reducing assembly complexity and component count. The flange also provides a thrust surface for axial loads.

The composite material contains solid lubricant particles distributed throughout the matrix. During operation, these particles transfer to the mating surface, forming a low-friction film that eliminates the need for external lubrication.

Yes. Flange diameter and thickness can be customized to match specific housing counterbore dimensions or to provide additional thrust bearing surface area.

Press fit using a tool that contacts the flange face uniformly. Ensure the counterbore depth matches flange thickness. Do not apply force to the bore surface during installation.

Replace when bore diameter wear exceeds 0.08mm, when flange thickness wear exceeds 0.10mm, or when the bushing shows signs of delamination or severe wear.

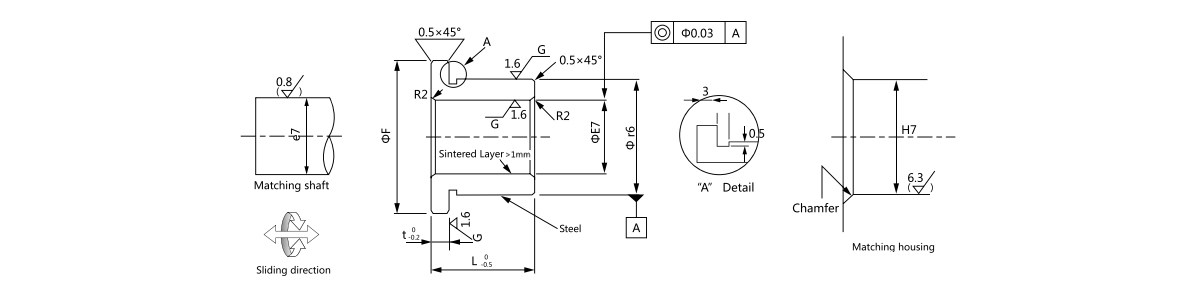

Parts No. фd фD фF t L
 200#F-2030 20  +0.061
+0.040
30  +0.041
+0.028
35  0
-0.2
30  0
-0.5
 200#F-2040 20  30  35  40
 200#F-3030 30  +0.075
+0.050
40  +0.050
+0.034
45  30
 200#F-3060 30  40  45  60
 200#F-4040 40  50  +0.060
+0.041
55  10  40
 200#F-4080 40  50  55  10  80
 200#F-5050 50  +0.090
+0.060
62  67  10  50
 200#F-50100 50  62  67  10  100
 200#F-6060 60  74  +0.062
+0.043
79  10  60
 200#F-60120 60  74  79  10  120
 200#F-8080 80  +0.107
+0.072
100  +0.076
+0.054
105  10  80
 200#F-100100 100  120  +0.088
+0.063
125  10  100
 200#F-120100 120  +0.125
+0.085
140  +0.090
+0.065
145  10  100
 200#F-140100 140  160  +0.093
+0.068
165  10  100
 200#F-160120 160  180  +0.106
+0.077
185  10  120
