200#P10 Steel Graphite Insert Wear Plate / Oilless Wear Plate With 2 Counter‑sink Holes

Product Description:

200#P10 Oil-Retained Wear Plate is a durable oil-retained wear plate designed for heavy-duty industrial applications. Designed to withstand extreme pressure and reduce friction, this self-lubricating P10 steel plate ensures long-lasting durability with minimal maintenance costs. Our 200#P10 Heavy Machinery Bearing Plate is a great choice for heavy machinery, mining and construction.

Steel Graphite Counter-sink Holes Oilless Wear Plate

Steel Graphite Insert Wear Plate / Oilless Wear Plate With 2 Counter-sink Holes

Steel Base Graphite Insert 2 Counter-sink Holes
WP Wear Plate
300 Max Temp °C
200 N/mm² Load
Steel Graphite Insert Wear Plate with Counter-sink Holes
Product Overview

This steel graphite insert wear plate features two precision counter-sink mounting holes for secure and flush installation. The high-strength steel substrate provides exceptional load capacity up to 200 N/mm² with excellent dimensional stability. Graphite plugs embedded in the sliding surface deliver continuous maintenance-free lubrication. The counter-sink holes allow for flat-head screw mounting, providing a flush surface profile ideal for guide and sliding applications. Custom dimensions, graphite patterns, and hole configurations available for specific equipment requirements.

Steel Substrate Strength High-strength steel backing provides load capacity up to 200 N/mm². Dimensional stability under heavy loads and impact.
Graphite Insert Lubrication Graphite plugs embedded in the sliding surface. Delivers continuous maintenance-free operation.
2 Counter-sink Holes Precision counter-sink holes for flat-head screw mounting. Flush surface profile for smooth sliding.
Customizable Configuration Dimensions, graphite pattern, and hole configurations adjustable to meet specific application requirements.
Core Advantages
  • Steel substrate provides high load capacity up to 200 N/mm²
  • Graphite inserts eliminate lubrication maintenance
  • 2 counter-sink holes enable flush mounting with flat-head screws
  • Flush surface profile ideal for sliding and guide applications
  • Custom dimensions and hole configurations available
Product Characteristics
  • Material: High-strength steel with graphite inserts
  • Mounting: 2 counter-sink holes for flat-head screws
  • Graphite coverage: 18-22% on sliding surface
  • Thickness tolerance: ISO h9 at 20°C reference
  • Operating temperature: -40°C to 300°C continuous
Application Scenarios
Machine tool guide wear plates Heavy equipment slide surfaces Press tool sliding wear strips Automation equipment guide plates Steel mill guide surfaces Construction equipment wear plates Industrial slide guide systems Custom wear plate applications
Customization Available Wear plates with counter-sink holes can be customized for specific applications. Options include custom length, width, thickness, graphite plug pattern, hole diameter and spacing, counter-sink depth, and surface finish. Engineering consultation available for non-standard configurations.
L x W: Custom Thickness: 6-50mm Holes: Custom spacing
Frequently Asked Questions

Counter-sink holes allow flat-head screws to sit flush with the wear plate surface, providing a smooth, uninterrupted sliding surface without protruding hardware that could interfere with motion.

Graphite inserts are mechanically retained in precision-machined pockets within the steel surface. The inserts are pressed in securely, ensuring retention during operation.

Yes. The number, position, and size of mounting holes can be customized. Additional counter-sink holes can be added based on application requirements.

Screw size depends on the plate thickness and application load. Consult engineering for specific recommendations based on your application requirements.

Replace when surface wear exceeds 0.5mm, when graphite on the sliding surface falls below 12% of original coverage, or when the plate shows signs of deformation or cracking.

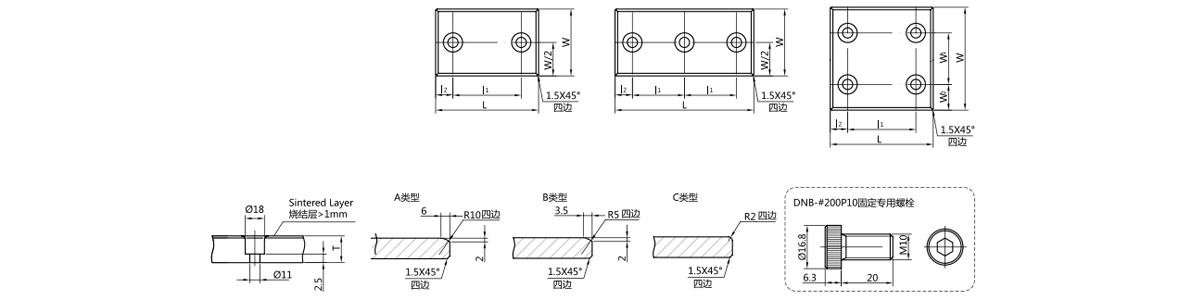

Parts No. Width Length Thickness Mounting holes Pitch Number of Screw holes Chamfered shape
W Tol. L Tol. T Tol. W1 Tol. W2 L1 Tol. L2
200#P10-2875 28  -0.1
-0.3
75  -0.1
-0.3
10  ±0.01 45  ±0.2 15  C
200#P10-28100 28  100  10  50  25
200#P10-28125 28  125  10  75  25
200#P10-28150 28  150  10  100  25
200#P10-3875 38  75  10  45  15
200#P10-38100 38  100  10  50  25
200#P10-38125 38  125  10  75  25
200#P10-38150 38  150  10  100  25
200#P10-4875 48  75  10  45  15  B
200#P10-48100 48  100  10  50  25
200#P10-48125 48  125  10  100  25
200#P10-48150 48  150  10  100  25
200#P10-48200 48  200  10  100  50
200#P10-48250 48  250  10  45  25
200#P10-7575 75  75  10  25  25  A
200#P10-75100 75  100  10  50  25
200#P10-75125 75  125  10  75  25
200#P10-75150 75  150  10  100  25
200#P10-75200 75  200  10  150  25
200#P10-75250 75  250  10  100  25
200#P10-75300 75  300  10  100  50
200#P10-100100 100  100  10  50  ±0.2 25  50  25
200#P10-100125 100  125  10  75  25
200#P10-100150 100  150  10  100  25
200#P10-100200 100  200  10  150  25
200#P10-100250 100  250  10  200  25
200#P10-100300 100  300  10  200  50
200#P10-125125 125  125  10  37.5 75  25
200#P10-125150 125  150  10  100  25
200#P10-125200 125  200  10  150  25
200#P10-125250 125  250  10  200  25
200#P10-125300 125  300  10  200  50
200#P10-150150 150  150  10  100  25  100  25
200#P10-150200 150  200  10  150  25
200#P10-150250 150  250  10  200  25

Feature
1. Likely made of durable materials for bearing use
2. Designed for smooth sliding motion, with installation - friendly holes
3. Good wear - resistance to withstand friction

Application
1. Industrial machinery and conveyor systems
2. Automotive components like sliding doors and seats
