Wholesale JFBB Metric Self-lubricating Oilless Graphite Flanged Bearings Bushings

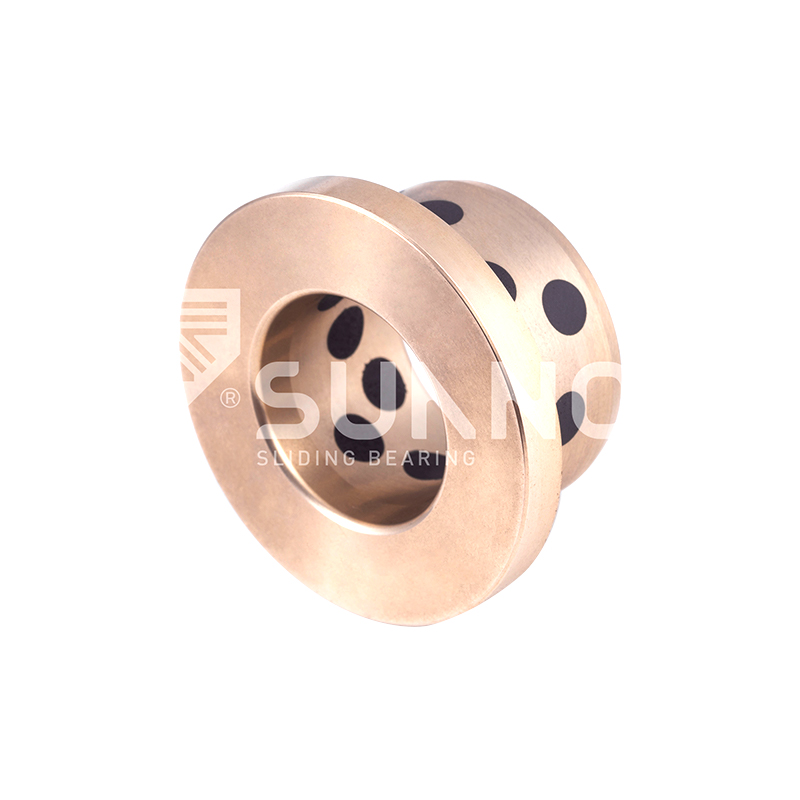

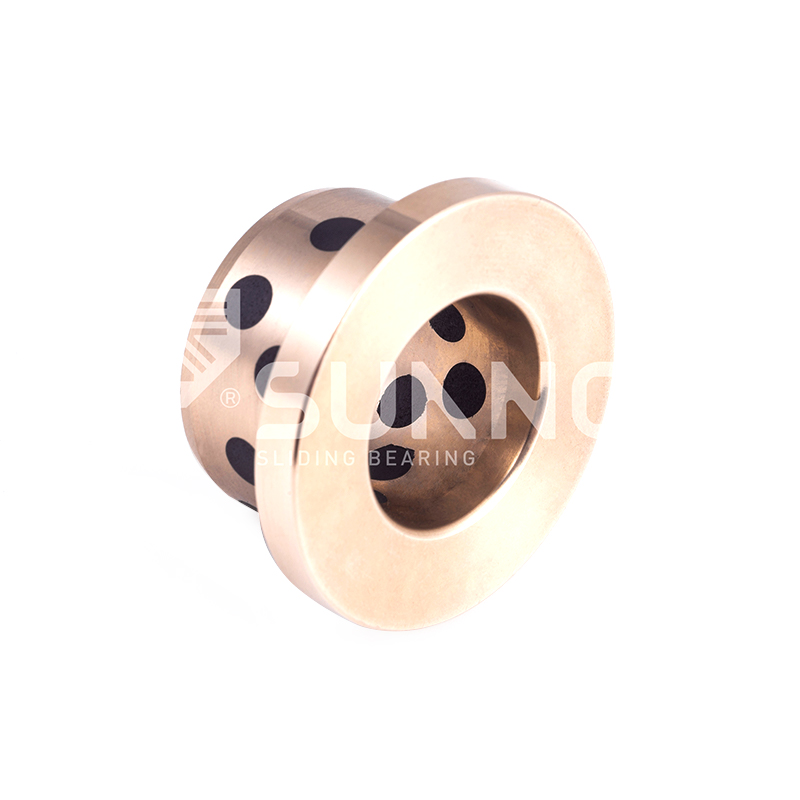

JFBB Metric Self-lubricating Oilless Graphite Flanged Bearings Bushings

Product Description:

JFBB Metric Self-lubricating Oilless Graphite Flanged Bearings Bushings are high-performance self-lubricating oilless graphite flanged bearings designed for applications that require long-term high loads and high wear resistance. Using advanced graphite self-lubricating materials, it can provide excellent lubrication performance without the need for additional lubricants. The flange design enhances stability and installation convenience, and is suitable for a variety of industrial fields, including automation, machinery manufacturing, and automobiles. JFBB graphite bearings are resistant to high temperatures, corrosion, and chemicals, and are suitable for various harsh working environments.

JFBB Series | Metric Self-Lubricating

JFBB Metric Self-lubricating Oilless Graphite Flanged Bearings Bushings

Standard: ISO 3547-2 Material: Graphite Embedded Bronze Flanged Configuration
01
Load Handling
Static: 220 N/mm²
Dynamic: 100 N/mm²
PV Max: 1.6 N/mm²·m/s
02
Thermal Range
Min: -40°C
Max: 180°C
Short Peak: 220°C
03
Velocity Limits
Continuous: 0.45 m/s
Intermittent: 0.9 m/s
Oscillating: 0.3 m/s
Design Architecture

The JFBB flanged bearing utilizes a controlled graphite distribution network within a phosphor bronze matrix. Graphite plugs are inserted at 45 degree intervals across both the cylindrical sliding surface and the radial flange face. This dual surface lubrication system ensures continuous oil free operation under combined radial and axial loading. The flange is integrally cast with the bearing body, eliminating press fit interface issues common with separate thrust washers. Metric dimensions follow ISO 3547-2 with standard tolerances of inner diameter H8 and outer diameter h8. Flange perpendicularity is maintained within 0.04 mm across the entire diameter range.

Graphite Lubricant Specification
Particle size: 150 microns | Purity: 99.5 percent | Coverage: 22 to 28 percent of sliding area | Insert pattern: Cross hatch distribution
Material Certificate Data
Base Alloy CuSn7Pb6Zn3 DIN 1709 compliant
Yield Strength Rp0.2 250 N/mm² minimum ISO 6892-1
Compression Strength 480 N/mm² ISO 604
Surface Roughness Finished Ra 0.8 micrometers ISO 4287

Operational Deployment Areas

Heavy Machinery
  • Excavator linkage pivot points
  • Wheel loader articulation joints
  • Bulldozer blade tilt mechanisms
Material Handling
  • Overhead crane end carriages
  • Conveyor drive tensioners
  • Forklift mast tilt cylinders
Industrial Automation
  • Robotic arm wrist joints
  • Pick and place rotary actuators
  • Assembly line indexing tables
Marine Deck Gear
  • Winch boom pivot supports
  • Davit launching systems
  • Hatch cover hinge points
Flange Load Distribution
Maximum axial load on flange face: 35 N/mm². Flange diameter sized to distribute thrust loads without plastic deformation of the bronze substrate.
Shaft Compatibility
Hardened steel shaft 45 to 55 HRC with Ra 0.2 to 0.5 micrometers. Avoid chrome plated or stainless shafts due to galling potential with graphite lubricant.
Housing Requirements
ISO H7 tolerance for press fit applications. Counterbore depth tolerance ±0.05 mm. Lead in chamfer of 1.5 mm at 20 degrees required.
Lubricant Life Cycle
Graphite inserts provide lubrication for 8000 to 12000 sliding kilometers under rated loads. Replace bushing when friction coefficient exceeds 0.20.

Metric Flanged Dimensions Standard Range

JFBB Flanged Bushing Dimensions in mm
ID OD Flange OD Length L Flange Thickness
8 12 18 8, 10, 12, 15 2.0
10 14 22 10, 12, 15, 20 2.0
12 18 28 10, 12, 15, 20, 25 2.5
16 22 32 15, 20, 25, 30 2.5
20 28 42 20, 25, 30, 40 3.0
25 33 50 25, 30, 40, 50 3.0
30 40 58 30, 40, 50, 60 3.5
35 45 65 35, 40, 50, 70 3.5
40 50 70 40, 50, 60, 80 4.0
50 62 85 50, 60, 70, 100 4.0
Custom inner diameters from 6mm to 120mm available. Flange diameters up to 150mm for heavy wall configurations. Consultation required for non standard combinations.

Frequently Asked Questions

Can the JFBB bearing be used in underwater applications
Yes. The graphite lubricant is inert and does not wash away in fresh or salt water. Maximum submerged speed limited to 0.2 m/s to prevent water ingression into the bronze matrix pores.
What is the recommended installation press force
Press force ranges from 5 kN for 8mm ID bearings to 45 kN for 50mm ID bearings. Calculate based on housing bore interference of 0.025mm to 0.050mm for standard H7 tolerance fits.
Does the flange require additional thrust washers
No. The integral flange face contains graphite inserts specifically positioned to handle axial thrust loads up to 35 N/mm². Additional thrust washers are not required for normal operating conditions.
How to identify worn JFBB bearings
Wear indicators include increased operational noise, radial play exceeding 0.15 mm when measured at ID, or visible graphite depletion where less than 15 percent of lubricant area remains on the sliding surface.

Installation Guidelines

Step A
Verify housing counterbore depth. Insert a depth micrometer to measure from housing face to counterbore shoulder. Depth must equal flange thickness plus 0.05mm to 0.10mm clearance.
Step B
Deburr all housing edges. Use a fine file or deburring tool on bore entry, counterbore corner, and flange seating face. Remove all metal chips before pressing.
Step C
Apply light assembly oil to the housing bore only. Do not apply oil to the bushing outer diameter. Use a press tool that contacts the entire flange perimeter evenly.
Step D
Press at constant speed of 5 to 10 mm per second. Stop immediately when flange contacts housing counterbore. Do not hammer or impact press.
Never weld or machine the bearing after installation. Heat above 250°C degrades lubricant properties. Post installation machining damages the graphite insert pattern.

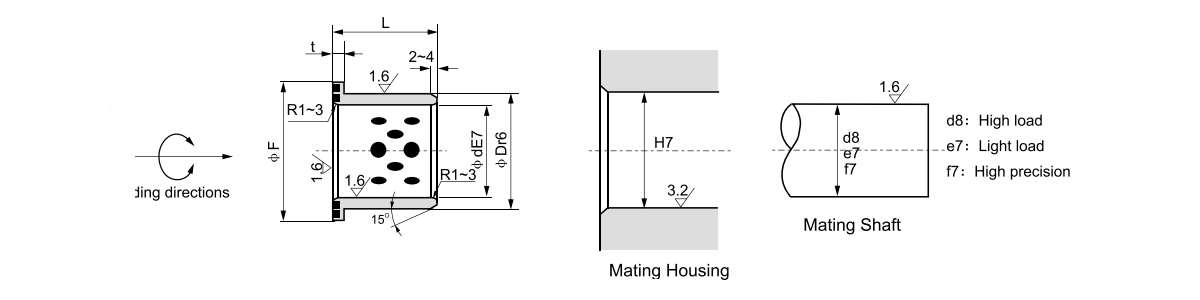

Inner diameter F7
I.D.фd
Outer diameter m6
0.D.фD
Flange L -0.1
   -0.3
I.D. After Press-
Fitting
I.D.фd
фF t 10 11 12 13 15 18 20 23 25 27 35 37 38 47 48 50 58 60 68 80 90
6 +0.032
+0.020
10 +0.034
+0.023
20 3 0
-0.03
0610 0611 0612 +0.016
+0.004
6
8 +0.040
+0.025
12 +0.034
+0.023
25 0812 0813 0815 +0.021
+0.006
8
10 14 25 1013 1018 10
12 +0.050
+0.032
18 30 1211 1218 1223 +0.031
+0.013
12
13 19 +0.041
+0.028
30 1313 1318 1323 +0.026
+0.008
13
15 21 35 1513 1518 1523 15
16 22 35 1613 1618 1623 1625 16
18 24 40 1818 2020 1823 18
20 +0.061
+0.040
28 45 5 2520 2025 +0.037
+0.016
20
25 33 +0.050
+0.034
50 3020 2525 +0.032
+0.011
25
30 38 55 3520 3025 3035 30
35 +0.075
+0.050
44 65 3525 3535 +0.046
+0.021
35
40 50 70 7 4027 4037 4047 40
50 62 +0.060
+0.041
90 8 5038 5048 5058 +0.040
+0.015
50
60 +0.090
+0.060
74 +0.062
+0.043
110 6038 6048 6058 6068 +0.053
+0.023
60
70 85 +0.073
+0.051
120 10 7050 7080 +0.046
+0.016
70
80 96 140 8060 8090 80
