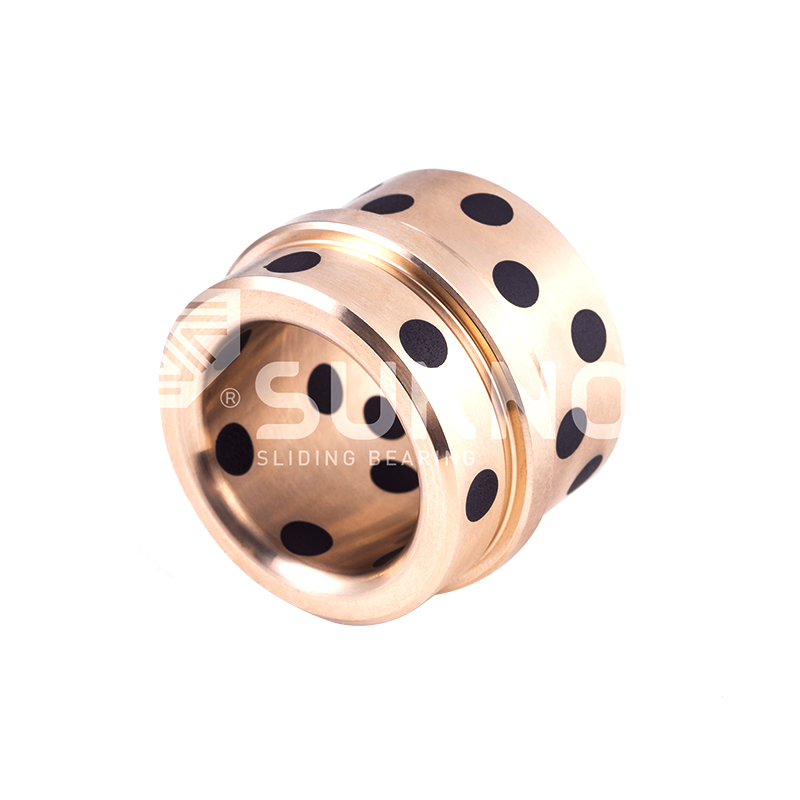

Product Description:

Middle flanged graphite plugged bronze bushing is made of high-strength bronze alloy with embedded solid graphite for dry lubrication. The middle flange structure realizes central axial limiting during installation. It adapts to low-speed and heavy-load operating conditions without continuous oil filling. Widely applied to automation equipment, molds, textile machinery, hydraulic and engineering machinery components.

Contact Us
PREV：Dual Flange Embedded Graphite Bronze Sleeve Bearing, High Load Maintenance Free Brass Bushing GB61 NAAMS
NEXT：Stepped-Flange Self-lubricating Bronze Bushing Graphite Plugged Sliding Sleeve Bearing JOSG
Center Flange | Mould & Automation

Center Flange Bronze Bushing With Solid Graphite Inserts Oilless Plain Bearing For Mould & Automation Equipment

Center Flange Graphite Inserts Oilless Plain Bearing
CF Center Flange
260 Max Temp °C
200 N/mm² Static

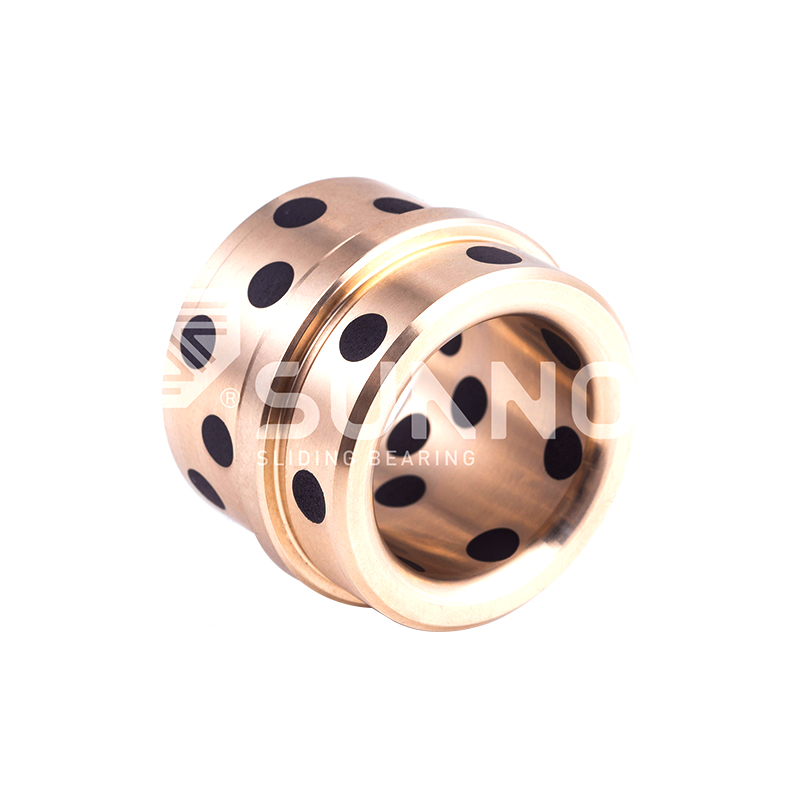

Center Flange Bronze Bushing With Solid Graphite Inserts
Product Overview

This center flange bronze bushing features solid graphite inserts positioned around the cylindrical bore and the centrally located flange face. Designed specifically for mould and automation equipment, the center flange provides axial location from a single, centrally positioned reference point, simplifying assembly and ensuring consistent positioning. The graphite inserts deliver maintenance-free lubrication for both radial guidance and axial thrust loads. The bronze substrate offers corrosion resistance and load capacity up to 200 N/mm² static. Custom dimensions, graphite patterns, and flange configurations available to meet specific mould and automation requirements.

Core Advantages
  • Center flange provides single-point axial reference for simplified assembly
  • Graphite inserts on bore and flange for bidirectional lubrication
  • Maintenance-free operation suitable for automated equipment
  • Bronze substrate offers corrosion resistance in mould environments
  • Custom dimensions available for specific mould and automation needs
Product Characteristics
  • Material: CuSn8 bronze with high purity graphite inserts
  • Flange position: Center (centrally located)
  • Graphite coverage: 20-25% on bore, 14-18% on flange face
  • Bore tolerance: ISO H8 at 20°C reference
  • Operating temperature: -40°C to 260°C continuous
Center Flange Design Flange positioned at the center of the bushing length. Provides axial location from a single reference point, simplifying installation in mould and automation equipment.
Solid Graphite Inserts High purity graphite plugs embedded in both bore and flange face. Delivers continuous lubrication without external oil or grease.
Mould & Automation Optimized Specifically designed for mould guide systems and automation equipment requiring reliable, maintenance-free guidance in production environments.
Customizable Configuration Dimensions, graphite insert pattern, flange thickness, and bore tolerances adjustable to meet specific application requirements.
Application Scenarios
Injection mould guide systems Die casting mould ejector guides Automation linear guide bushings Robotic end-of-arm tooling pivots Mould positioning pin bushings Automated assembly fixture guides Packaging machine guide bearings Custom mould and automation fixtures
Customization Available Center flange bearings can be customized for specific mould and automation applications. Options include custom bore and outer diameters, flange position and thickness variations, graphite insert density, and bore tolerances. Engineering consultation available for non-standard configurations.
ID: 6-80mm OD: 12-100mm Flange: Center position variable
Frequently Asked Questions
What is the advantage of a center flange over end flanges
Center flange provides a single axial reference point, simplifying assembly and reducing the need for precise counterbore depths on both sides. It is particularly advantageous in mould and automation applications where space constraints exist.
How are graphite inserts distributed on the center flange
Graphite inserts are arranged in a circular pattern on the center flange face. Typically 8-16 inserts depending on flange diameter, providing uniform lubrication for axial thrust loads in both directions.
Can the center flange position be adjusted from standard
Yes. While the standard center flange is positioned at the midpoint of the bushing length, custom flange positions can be specified to meet specific application requirements.
What is the recommended installation method for center flange bearings
Press fit using a tool that contacts both the flange face and the bushing outer diameter. The center flange requires counterbore on both sides of the housing for proper seating and retention.
How to determine when to replace a center flange bearing
Replace when bore diameter wear exceeds 0.06mm, flange thickness wear exceeds 0.08mm, or when graphite on the flange face falls below 12% of original surface area.
Type Center Flange
Material CuSn8 Bronze
Lubrication Graphite Inserts
Max Load 200 N/mm²
Custom Available

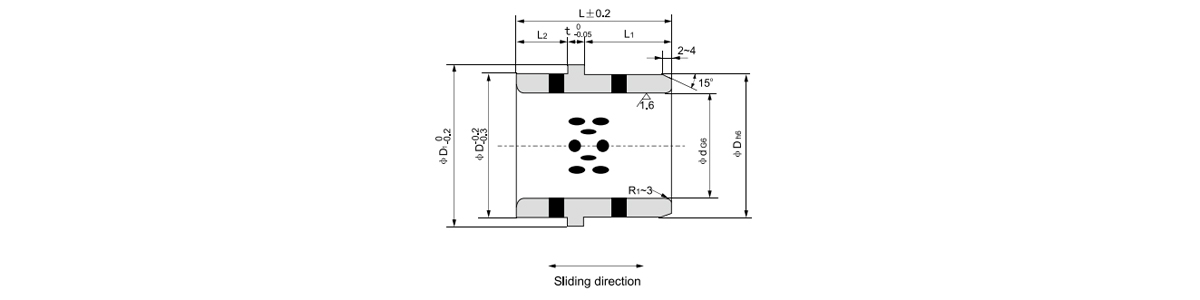

Standard No. d L d G6  D h6 D1 L1 L2 t
JEGB-16×26 16  26  16  +0.017
+0.006		 25  0
-0.013		 30  12  10  4
JEGB-16×28 28  14
JEGB-16×33 33  19
JEGB-16×38 38  24
JEGB-20×26 20  26  20  +0.020
+0.007		 30  35  12
JEGB-20×28 28  14
JEGB-20×33 33  19
JEGB-20×38 38  24
JEGB-25×26 25  26  25  35  0
-0.016		 40  12
JEGB-25×28 28  14
JEGB-25×33 33  19
JEGB-25×38 38  24
JEGB-30×33 30  33  45  14  15
JEGB-30×38 38  35  +0.025
+0.009		 46  19
JEGB-30×46 43  24
JEGB-35×38 35  38  50  19
JEGB-35×43 43  24
JEGB-35×48 48  40  52  0
-0.019		 29
JEGB-40×48 40  48  57  24  20
JEGB-40×53 53  29
JEGB-50×48 50  48  50  62  67  24
JEGB-50×53 53  29
JEGBK-25×33 25  33 25  +0.020
+0.006		 35 0
-0.016		 40  19  6  8
JEGBK-25×38 38 24  6
JEGBK-30×48 30  48  30  40 45  29  11
JEGBK-30×47 47  42 47  24  15
JEGBK-30×52 52  29  15
JEGBK-35×63 35  63  35  +0.017
+0.006		 45  50  39  16
JEGBK-40×60 40  60  40  50  55  32  20
JEGBK-40×70 70  42  20
JEGBK-40×78 78  49  21
JEGBK-40×57 57  55  0
-0.019		 60  24  25
JEGBK-40×67 67  29  30
JEGBK-45×88 45  88  45  59  21
JEGBK-45×95 98  69  21
JEGBK-50×67 50  67  50  62  67  29  30
JEGBK-50×87 87  39  40
JEGBK-60×67 60  67  60  +0.017
+0.006		 74  82  29  30
JEGBK-60X87 87  39  40

Features
1. Self - lubricating: Made of self - lubricating materials, no extra oil needed, cuts maintenance cost and downtime.
2. Precision: Precision guide bearings, reduce friction, improve equipment accuracy.
3. Durable: High wear resistance, long service life.
4. Stable: Work stably under high speed and load.

Applications
1. Plastic Molding: Used in ejector systems for efficient plastic part production.
2. Industrial Machinery: Applied in various machines to maintain performance and reliability.
