Wholesale JFB650 Metric Oil Free Self Lubricating Bronze Round Flanged Bearing

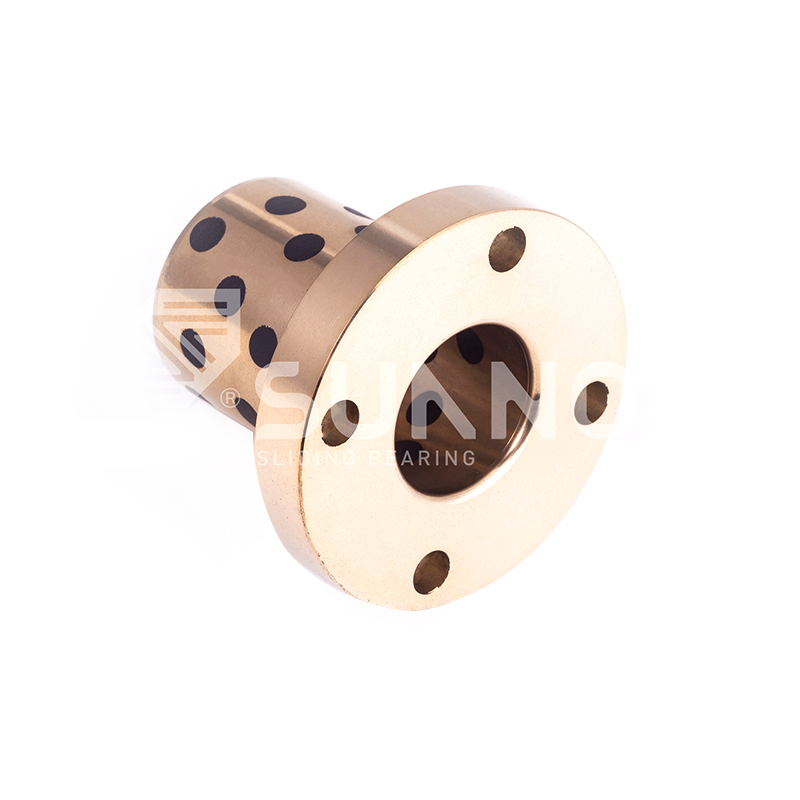

JFB650 Metric Oil Free Self Lubricating Bronze Round Flanged Bearing

Product Description:

JFB650 Metric Oil Free Self Lubricating Bronze Round Flanged Bearing is an oil-free self-lubricating bronze alloy bearing designed for applications requiring high wear resistance and long life. Made of high-quality copper alloy material, the surface has self-lubricating function, no additional lubricating oil or grease is required, suitable for use in harsh working conditions. The round flange design provides additional fixing stability and can effectively reduce axial loads. JFB650 bearings are particularly suitable for high-load, low-speed moving parts in machinery, automobiles, electricity, mining and other industrial fields, and are widely used in transportation equipment, pumps, fans and heavy machinery.

Metric Series

JFB650 Metric Oil Free Self Lubricating Bronze Round Flanged Bearing

ID Range: 10mm - 120mm | Flange OD: Up to 140mm
250
N/mm²
Static Load Capacity
200
°C
Max Operating Temp
0.16
μ
Dynamic Friction
0.5
°
Misalignment Tolerance

Flanged Bearing Overview

The JFB650 series represents a flanged configuration of the self-lubricating bronze bearing family, specifically designed for applications requiring axial location control in addition to radial support. The bearing consists of a high strength CuSn8 bronze substrate with solid graphite lubricant inserts placed at the sliding interface. The integrated flange face eliminates the need for separate thrust washers or retaining rings, reducing assembly steps and component inventory. This oil free design operates without external grease, making it suitable for applications where lubricant leakage or contamination presents operational risks. The metric dimensioning follows ISO 3547-2 standards, allowing direct replacement of conventional flanged bushings in existing assemblies.

Flange Specific Advantages

  • Integral flange provides axial positioning without additional hardware
  • Flange face contains lubricant pattern for thrust load management
  • One piece construction eliminates fretting corrosion between separate components
  • Flange thickness ranges from 2mm to 5mm depending on series size
  • Chamfered flange edge prevents housing edge damage during press fit

Physical Specifications

Material CuSn8 bronze with graphite
Density 8.2 g/cm³
Tensile Strength 520 N/mm² minimum
Elongation 15 percent minimum
Hardness 130-180 HB

Performance Data by Load Condition

Continuous Operation
Max Load: 80 N/mm²
Max Speed: 0.4 m/s
Max PV: 1.2 N/mm²·m/s
Intermittent Operation
Max Load: 120 N/mm²
Max Speed: 0.8 m/s
Max PV: 1.8 N/mm²·m/s
Oscillating Motion
Max Load: 150 N/mm²
Frequency: up to 50 cycles/min
Angle: ±45 degrees
Low Speed Heavy Load
Max Load: 200 N/mm²
Speed: below 0.05 m/s
PV Limit: 1.0 N/mm²·m/s

Target Applications for Flanged Configuration

Hydraulic cylinder end mounts Linear actuator pivot points Articulating joint linkages Rotary actuator supports Positioning table guides Mold clamping units Press machine linkages Packaging turret bearings

Flange Related Limitations

  • Flange face not recommended for continuous pure thrust loads exceeding 40 N/mm²
  • Flange outer diameter tolerance: ISO h11 for standard configurations
  • Flange perpendicularity to bore axis: 0.05 mm per 100 mm diameter
  • Housing counterbore depth tolerance: ±0.1 mm for proper flange seating

Common Technical Inquiries

Flange orientation during installation
Install with flange face contacting the housing counterbore shoulder. The flange provides axial retention and should face the direction of the primary thrust load.
Lubricant distribution on flange face
The flange sliding surface contains lubricant inserts arranged radially. This pattern provides lubrication for axial movements or thrust load conditions.
Compatibility with rotating shafts
Suitable for rotating, oscillating, and linear motions. For continuous rotation, ensure shaft hardness of 45 HRC minimum and surface finish Ra 0.4 micrometers.
Available flange mounting holes
Standard flanged bearings are supplied without bolt holes. Flanges with mounting holes available for custom orders with minimum quantity requirements.

Standard Metric Flanged Bushing Dimensions

Inner Diameter mm Outer Diameter mm Flange Diameter mm Length mm Flange Thickness mm
10 14 22 10, 15, 20 2.0
12 18 28 10, 15, 20, 25 2.5
15 21 32 15, 20, 25, 30 2.5
20 28 42 20, 25, 30, 40 3.0
25 33 50 25, 30, 40, 50 3.0
30 40 58 30, 40, 50, 60 3.5
40 50 70 40, 50, 60, 70 4.0
50 62 85 50, 60, 70, 80 4.0
60 72 98 60, 70, 80, 100 4.5

Non standard lengths and flange diameters available for custom orders. Contact technical sales for dimensions outside the standard range.

Installation Procedure for Flanged Bushings

01
Counterbore Preparation
Machine housing counterbore to depth equal to flange thickness plus 0.1mm clearance. Surface finish Ra 3.2 micrometers or better.
02
Lead-in Chamfer
Apply 1mm x 15 degree chamfer on housing bore entry to guide bushing during press fit.
03
Press Fit Tooling
Use flat faced tool contacting the entire flange face. Never press directly on the bushing inner bore or lubricant area.
04
Seating Verification
Confirm flange fully seats against counterbore shoulder. Gap of 0.05mm maximum permissible.

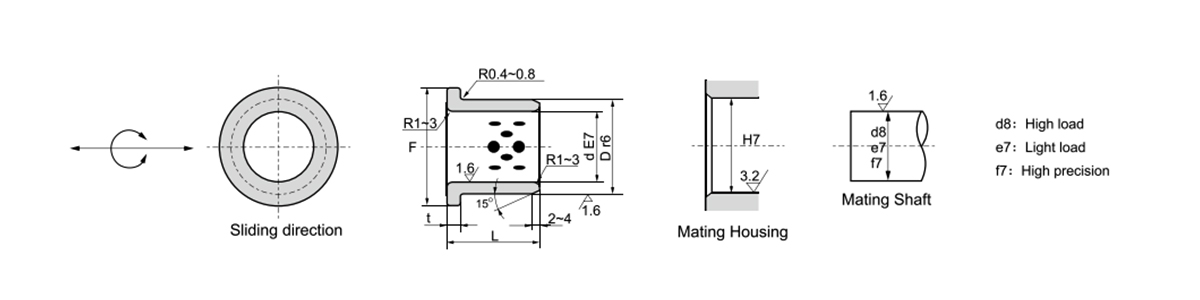

Inner diameter F7
I.D.фd
Outer diameter m6
0.D.фD
Flange L -0.1
   -0.3
I.D. After Press-
Fitting
I.D.фd
фF t 10 12 15 17 18 20 23 25 30 35 40 50 60 67.5 80 100 120
6 +0.032
+0.020
10 +0.028
+0.019
16 2 0
-0.1
0610 0612 +0.016
+0.004
6
8 +0.040
+0.025
12 20 +0.021
+0.006
8
10 +0.050
+0.032
14 +0.034
+0.023
22 0810 0812 0815 10
12 18 +0.041
+0.028
25 3 1010 1012 1015 1017 1020 1230 +0.031
+0.013
12
13 19 26 1210 1212 1215 1220 1225 1330 +0.026
+0.008
13
14 20 27 1310 1312 1315 1320 1325 14
15 21 28 1415 1420 1425 1530 15
16 22 29 1510 1512 1515 1520 1525 1630 1635 1640 16
18 24 32 1612 1615 1618 1620 1623 1625 1830 1835 1840 18
20 +0.061
+0.040
30 40 5 1815 2020 2025 2030 2035 2040 +0.037
+0.016
20
25 35 45 2015 2520 2525 2530 2535 2540 2550 +0.032
+0.011
25
30 40 50 2515 3020 3025 3030 3035 3040 3050 30
31.5 +0.075
+0.050
40 +0.050
+0.034
50 3120 3130 3135 3140 +0.046
+0.021
31.5
35 45 60 3520 3525 3530 3535 3540 3550 35
40 50 65 4020 4025 4030 4035 4040 4050 40
45 55 +0.060
+0.041
70 4530 4535 4540 4550 4560 +0.040
+0.015
45
50 60 75 5030 5035 5040 5050 5060 50
55 +0.090
+0.060
65 80 5540 5560 +0.055
+0.025
55
60 75 +0.062
+0.043
90 7.5 6040 6050 6060 6080 +0.053
+0.023
60
63 75 85 6367 63
65 80 95 6560 65
70 85 +0.073
+0.051
105 7050 7080 +0.046
+0.016
70
75 90 110 7560 75
80 100 120 10 8060 8080 80100 80
90 +0.107
+0.072
110 +0.076
+0.054
130 9060 9080 +0.060
+0.025
90
100 120 150 10080 100100 100
120 140 +0.088
+0.063
170 12080 120100 +0.052
+0.017
120
130 +0.125
+0.085
150 +0.090
+0.065
180 13080 130100 +0.068
+0.028
130
140 160 190 14080 140100 140
150 170 +0.093
+0.068
200 150100 150120 +0.065
+0.025
150
160 180 210 160100 160120 160
