Maintenance-Free With Collar Brass Din9834 Oilless Guide Bushing Bearing

Product Description:

Maintenance-Free With Collar Brass DIN9834 Oilless Guide Bushing Bearing is a high-performance self-lubricating, maintenance-free guide bushing bearing. Made of high-quality bronze material and embedded with graphite lubricant, it can achieve long-term stable operation without external lubrication. This bearing complies with DIN9834 and ISO 9448 standards, has excellent wear resistance and anti-fatigue performance, and is suitable for radial and axial loads. The graphite insert design can provide lifetime lubrication, effectively reducing maintenance costs, especially suitable for use in high temperature, high load or difficult to oil environment.

DIN 9834 Compliant

Maintenance-Free With Collar Brass Din9834 Oilless Guide Bushing Bearing

Collar Type Press Tool Standard Graphite Lubricated
Collar Design

The DIN 9834 collar bushing features an integral flange-style collar that provides positive axial location in press tooling applications. The collar eliminates the need for separate retaining rings or shoulder screws, reducing assembly complexity. Manufactured from high strength brass with graphite lubricant inserts distributed along the cylindrical guide surface. The collar face remains free of lubricant to maintain full contact area for clamping and locating functions.

10-80 ID Range mm
300 Max Temp °C
DIN 9834 Standard
DIN 9834 Compliance Manufactured to DIN 9834 specifications covering geometry, tolerances, and materials for guide bushings in press and forming tools. Ensures interchangeability.
Integral Collar Collar provides depth stop during insertion, axial retention during operation, and reference face for measuring guide protrusion. Thickness from 3mm to 8mm.
Helical Graphite Pattern Lubricant inserts arranged in helical pattern along the cylindrical guide surface. Collar face contains no graphite to preserve locating contact integrity.
High Temperature Brass Brass substrate maintains dimensional stability and mechanical properties up to 300°C continuous operation. Suitable for hot forming applications.
Technical Specifications
Material Grade CuSn8 Bronze DIN EN 1982
Hardness 150-200 HB Brinell
Collar Tolerance ISO h9 Outer Diameter
Guide Bore Tolerance ISO H7 At 20°C
Lubricant Coverage 20-25% Bore surface
DIN 9834 Standard Dimensions Millimeter series with collar configuration
ID OD Collar OD Length Collar T Code
10 16 24 20/25/30 3.0 9834-10
12 18 28 25/30/35 3.5 9834-12
16 24 36 30/35/40 4.0 9834-16
20 30 44 35/40/50 4.0 9834-20
25 36 52 40/50/60 5.0 9834-25
30 42 60 50/60/70 5.0 9834-30
35 48 68 60/70/80 6.0 9834-35
40 54 78 70/80/100 6.0 9834-40
50 66 94 80/100/120 7.0 9834-50
60 78 108 100/120/150 8.0 9834-60
80 100 135 120/150/180 8.0 9834-80
Custom collar dimensions and non-standard lengths available. Special sizes require engineering consultation.
Typical Applications
Press Tool Guide Systems Stamping Die Alignment Injection Mold Guide Pins Transfer Die Guidance High Speed Blanking Tools Fine Blanking Presses
Installation Requirements
  • Housing bore: ISO H7 for press fit
  • Counterbore depth: collar thickness + 0.03mm clearance
  • Press tool: must contact collar face uniformly
  • Max press force: 15 kN for 80mm ID
  • Do not apply force to guide bore
Inspection & Maintenance
  • Check collar face for burrs before install
  • Measure bore wear at 20000 stroke intervals
  • Replace when ID wear exceeds 0.06mm
  • Clean collar shoulder during maintenance
  • Verify collar protrusion consistency
DIN 9834 Technical Inquiries
What does DIN 9834 specify Outer diameter, collar dimensions, length tolerances, and material specifications for guide bushings in press and forming tools.
Can collar bushing be used without counterbore Not recommended. The collar requires a counterbore for proper seating and alignment.
How to identify DIN 9834 compliance Check collar outer diameter and thickness against the DIN 9834 dimension table.
Graphite on collar face No. Graphite inserts are located only on the cylindrical guide surface.

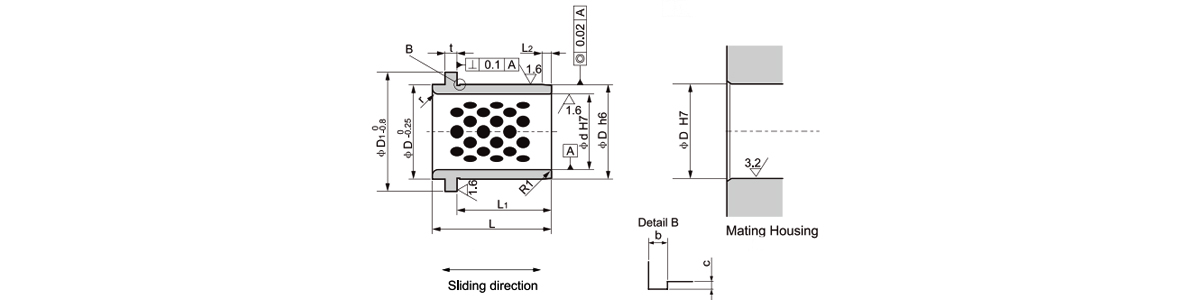

Standard No. d H7 D  h6 L   D1 L1 L2 t r bxc P
DIN9834-025 25    +0.021
0
32  0
-0.016
40    40  30  6.3  0.6x0.3 58
DIN9834-032 32    +0.025
    0
40  50    50  40  66
DIN9834-040 40  50  63    63  50  79
DIN9834-050 50  63  0
-0.019
71    71  56  6.3  89
DIN9834-063 63    +0.030
    0
80  80    90  63  10  1.0x0.4 123
DIN9834-080 80  100  0
-0.022
100    112  80  10  143
DIN9834-100 100  125  125    140  106  12.5  10  168
DIN9834-125 125    +0.040
    0
160  -0.025  160    180  132  16  12  203
DIN9834-160 160  200  0
-0.029
200    220  170  16  18  243
