JOSG Step flanged graphite plugged bronze bushing is fabricated from high-strength bronze alloy with embedded solid graphite as dry lubricant. Unique stepped flange structure realizes two-stage positioning during assembly for accurate installation. Suitable for low-speed, heavy-load reciprocating and swing movement without continuous oil supply. Widely used in automation equipment, injection molds, textile machinery and hydraulic engineering components.
This stepped-flange self-lubricating bronze bushing features a unique stepped flange profile that provides progressive axial location and increased load distribution. The flange incorporates a stepped diameter design, allowing the bushing to seat into counterbores with varying depths while maintaining consistent axial positioning. Graphite plugs are distributed across the cylindrical bore and the flange face, delivering maintenance-free lubrication for both radial and axial loading. The bronze substrate supports static loads up to 210 N/mm². Custom stepped flange geometries, dimensions, and graphite patterns available based on application requirements.

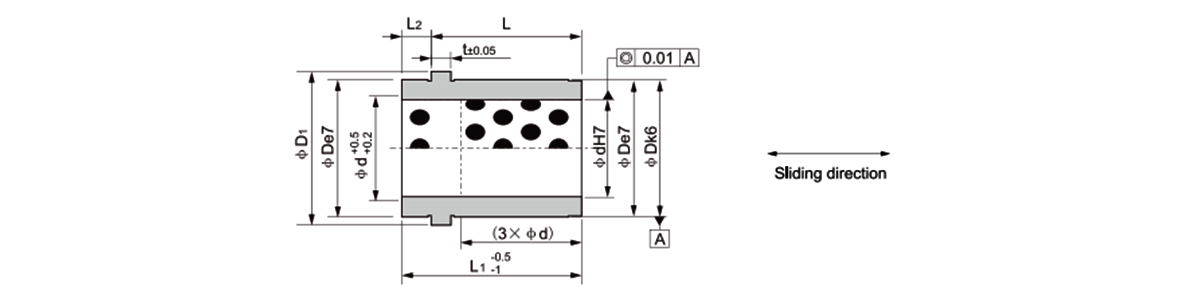

| Standard No | d | L | L1 | L2 | t | D | Tolerance | D1 | L1 | ||
| e7 | k6 | ||||||||||
| JOSG-9×15 | 9 | 12 | 15 | 3 | 3 | 14 | -0.032 -0.050 |
+0.012 +0.001 |
16 | 9 | +0.015 0 |
| JOSG-9×20 | 17 | 20 | |||||||||
| JOSG-9×25 | 22 | 25 | |||||||||
| JOSG-9×30 | 27 | 30 | |||||||||
| JOSG-9×39 | 36 | 39 | |||||||||
| JOSG-10×15 | 10 | 12 | 15 | 10 | |||||||
| JO5G-10×20 | 17 | 20 | |||||||||
| JOSG-10×25 | 22 | 25 | |||||||||
| JOSG-10×30 | 27 | 30 | |||||||||
| JOSG-10×39 | 36 | 39 | |||||||||
| JOSG-14×26 | 14 | 17 | 26 | 9 | 6 | 20 | -0.040 -0.061 |
+0.015 +0.002 |
25 | 14 | +0.018 0 |
| JO5G-14×31 | 22 | 31 | |||||||||
| J0SG-14×36 | 27 | 36 | |||||||||
| JOSG-14×45 | 36 | 45 | |||||||||
| JOSG-14×55 | 46 | 55 | |||||||||
| JOSG-14×65 | 56 | 65 | |||||||||
| JOSG-15×26 | 15 | 17 | 26 | 15 | |||||||
| JOSG-15×31 | 22 | 31 | |||||||||
| JOSG-15×36 | 27 | 36 | |||||||||
| JOSG-15×45 | 36 | 45 | |||||||||
| JOSG-15×55 | 46 | 55 | |||||||||
| JOSG-15×65 | 56 | 65 | |||||||||
| JOSG-18×26 | 18 | 17 | 26 | 26 | 31 | 18 | |||||
| JOSG-18×31 | 22 | 31 | |||||||||
| JOSG-18×36 | 27 | 36 | |||||||||
| JOSG-18×45 | 36 | 45 | |||||||||
| JOSG-18×55 | 46 | 55 | |||||||||
| JOSG-18×65 | 56 | 65 | |||||||||
| JOSG-18×75 | 66 | 75 | |||||||||
| JOSG-20×26 | 20 | 17 | 26 | 20 | +0.021 0 |
||||||
| JOSG-20×31 | 22 | 31 | |||||||||
| JO5G-20×36 | 27 | 36 | |||||||||
| JOSG-20×45 | 36 | 45 | |||||||||
| JOSG-20×55 | 46 | 55 | |||||||||
| J0SG-20×65 | 56 | 65 | |||||||||
| JOSG-20×75 | 66 | 75 | |||||||||
| JOSG-22×26 | 22 | 17 | 26 | 30 | 35 | 22 | |||||
| JOSG-22×31 | 22 | 31 | |||||||||
| JOSG-22×36 | 27 | 36 | |||||||||
| JOSG-22×45 | 326 | 46 | |||||||||
| JOSG-22×55 | 46 | 55 | |||||||||
| JOSG-22×65 | 56 | 65 | |||||||||
| JOSG-22×75 | 66 | 75 | |||||||||
| JOSG-22×85 | 76 | 85 | |||||||||
| JOSG-22×95 | 86 | 95 | |||||||||
| JOSG-24×26 | 24 | 17 | 26 | 42 | -0.040 -0.061 |
+0.015 +0.002 |
35 | 24 | +0.021 0 |
||
| JOSG-24×31 | 22 | 31 | |||||||||
| JOSG-24×36 | 27 | 36 | |||||||||
| JOSG-24×45 | 36 | 45 | |||||||||
| JOSG-24×55 | 46 | 55 | |||||||||
| JOSG-24×65 | 56 | 65 | |||||||||
| JOSG-24×75 | 66 | 75 | |||||||||
| JOSG-24×85 | 76 | 85 | |||||||||
| JOSG-24×95 | 86 | 95 | |||||||||
| JOSG-30×36 | 30 | 27 | 36 | -0.05 -0.075 |
+0.018 +0.002 |
47 | 30 | ||||
| JOSG-30×45 | 36 | 45 | |||||||||
| JOSG-30×55 | 46 | 55 | |||||||||
| JOSG-30×65 | 56 | 65 | |||||||||
| JOSG-30×75 | 66 | 75 | |||||||||
| JOSG-30×85 | 76 | 85 | |||||||||
| JOSG-30×95 | 86 | 95 | |||||||||
| JOSG-30×105 | 96 | 105 | |||||||||
| JOSG-30×125 | 116 | 125 | |||||||||
| JOSG-32×36 | 32 | 27 | 36 | 32 | |||||||
| JOSG-32×45 | 36 | 45 | |||||||||
| JOSG-32×55 | 46 | 55 | |||||||||
| JOSG-32×65 | 56 | 65 | |||||||||
| JOSG-32×75 | 66 | 75 | |||||||||
| JOSG-32×85 | 76 | 85 | |||||||||
| JOSG-32×95 | 86 | 95 | |||||||||
| JOSG-32×105 | 96 | 105 | |||||||||
| JOSG-32×125 | 116 | 125 | |||||||||
| JOSG-40×68 | 40 | 56 | 68 | 12 | 10 | 54 | -0.060 -0.090 |
+0.021 +0.002 |
60 | 40 | +0.025 0 |
| JOSG-40×78 | 66 | 78 | |||||||||
| JOSG-40×88 | 76 | 88 | |||||||||
| JOSG-40×98 | 86 | 98 | |||||||||
| JOSG-40×108 | 96 | 108 | |||||||||
| JOSG-40×128 | 116 | 128 | |||||||||
| JOSG-40×148 | 136 | 148 | |||||||||
| JOSG-40×168 | 156 | 168 | |||||||||
| JOSG-42×68 | 42 | 56 | 68 | 42 | |||||||
| JOSG-42×78 | 66 | 78 | |||||||||
| JOSG-42×88 | 76 | 88 | |||||||||
| JOSG-42×98 | 86 | 98 | |||||||||
| JOSG-42×108 | 96 | 108 | |||||||||
| JOSG-42×128 | 116 | 128 | |||||||||
| JOSG-42×148 | 136 | 148 | |||||||||
| JOSG-42×168 | 156 | 168 | |||||||||
