Flangeless Graphite Bronze Wear Block, Square Self Lubricating Bronze Guide Plate JESW

Product Description:

Square graphite plugged bronze wear plate is manufactured from high-strength bronze alloy with embedded solid graphite as solid lubricant. The flat plate structure is designed for plane sliding movement. It achieves maintenance-free operation under low-speed, heavy-load conditions without continuous oil supply. Widely used for injection molds, die casting molds, automation equipment sliding guides and mechanical friction parts.

Flangeless | Square Guide Plate

Flangeless Graphite Bronze Wear Block, Square Self Lubricating Bronze Guide Plate

Square Profile Graphite Bronze Wear Block
FW Flangeless
260 Max Temp °C
180 N/mm² Load
Flangeless Graphite Bronze Wear Block

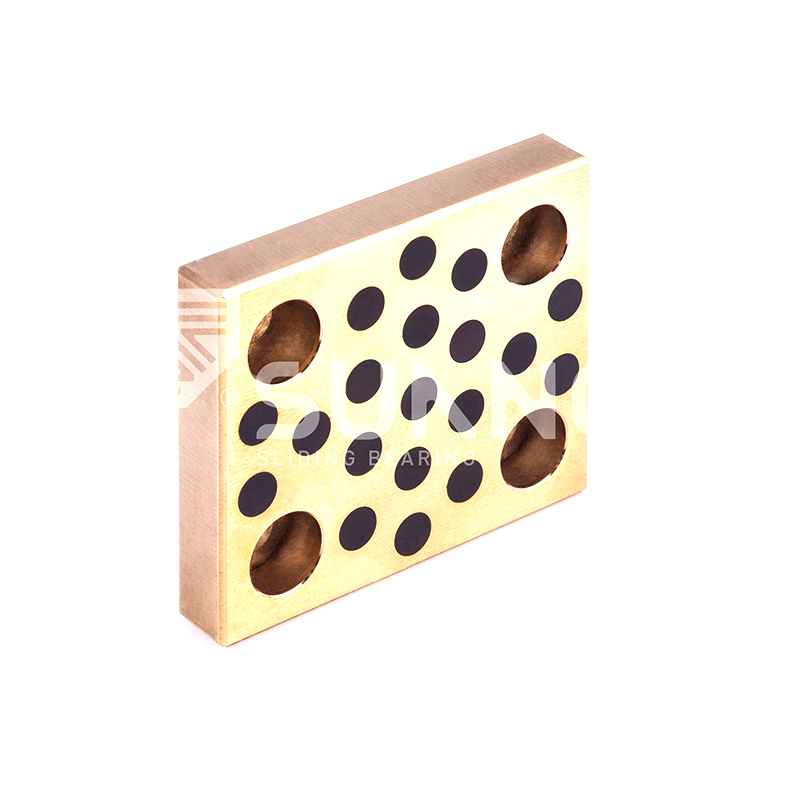

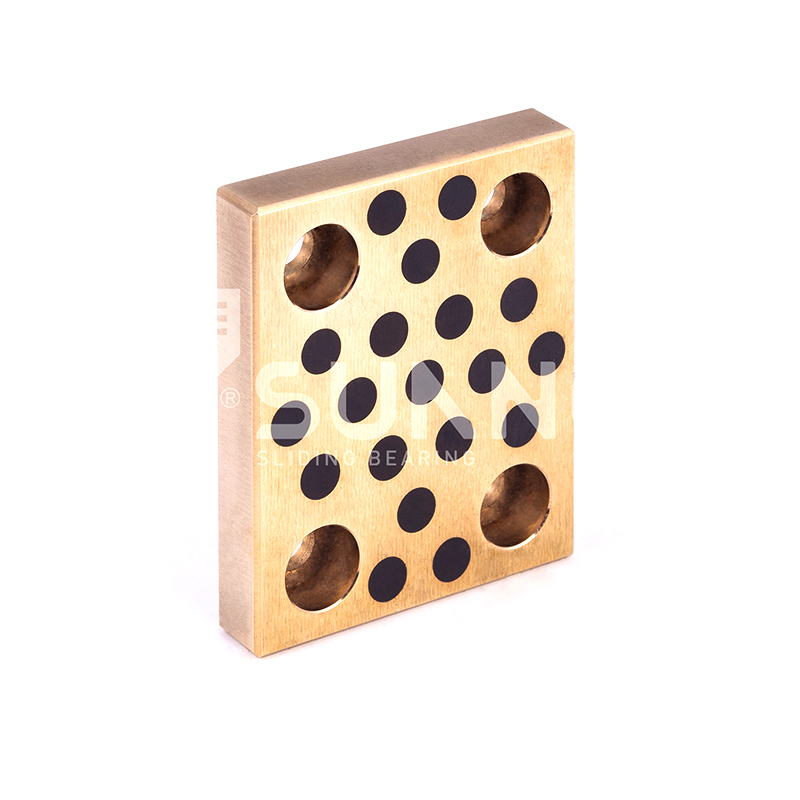

This flangeless graphite bronze wear block features a square profile design, serving as a self-lubricating guide plate for linear motion and sliding applications. The flangeless configuration allows for mounting in confined spaces where flange clearance is not available. Graphite plugs are embedded in the sliding surface, providing continuous maintenance-free lubrication. The bronze substrate offers wear resistance and load capacity up to 180 N/mm². Custom dimensions, graphite patterns, and mounting hole configurations available to meet specific guide plate requirements.

Flangeless Square Profile Square guide plate without flange. Compact design for applications where flange clearance is limited or not required.
Graphite Plugged Surface Graphite plugs embedded in the sliding surface. Delivers maintenance-free lubrication for guide plate applications.
Wear Resistant Bronze Bronze substrate provides wear resistance and supports loads up to 180 N/mm². Suitable for heavy duty guide applications.
Customizable Configuration Dimensions, graphite pattern, mounting holes, and thickness adjustable to meet specific application requirements.
Core Advantages
  • Flangeless square profile allows mounting in confined spaces
  • Graphite plugged design eliminates lubrication maintenance
  • Bronze substrate offers wear resistance and high load capacity
  • Square geometry provides stable guidance and easy alignment
  • Custom sizes and mounting configurations available
Product Characteristics
  • Material: CuSn8 bronze with high purity graphite plugs
  • Profile: Square / rectangular flangeless
  • Graphite coverage: 18-22% on sliding surface
  • Thickness tolerance: ISO h9 at 20°C reference
  • Operating temperature: -40°C to 260°C continuous
Application Scenarios
Linear guide plate systems Wear block slide applications Machine tool guide surfaces Automation equipment guide plates Press tool sliding surfaces Heavy equipment wear plates Custom guide plate applications Industrial slide systems
Customization Available Flangeless wear blocks and guide plates can be customized for specific applications. Options include custom length, width, thickness, graphite plug pattern, mounting hole locations, and surface finish. Engineering consultation available for non-standard configurations.
L x W: Custom Thickness: 5-50mm Mounting: Custom holes
Frequently Asked Questions
What is the advantage of a flangeless square guide plate
A flangeless square guide plate can be mounted in confined spaces where flange clearance is not available. The square profile provides stable guidance and allows for easy alignment in multiple orientations.
How are graphite plugs distributed on the wear block surface
Graphite plugs are arranged in a grid pattern across the sliding surface. The number and spacing of plugs depend on the block dimensions, ensuring uniform lubrication across the entire guide surface.
Can mounting holes be added to the wear block
Yes. Custom mounting hole configurations can be specified, including counterbored holes, threaded holes, or through holes. Hole locations and sizes are determined based on application requirements.
What is the recommended mounting method for guide plates
Mount using bolts through the designated mounting holes. Ensure the mounting surface is flat and clean. Torque bolts to specifications to prevent distortion of the guide plate.
How to determine when to replace a wear block
Replace when surface wear exceeds 0.5mm, when graphite on the sliding surface falls below 12% of original coverage, or when the block shows signs of cracking or deformation.

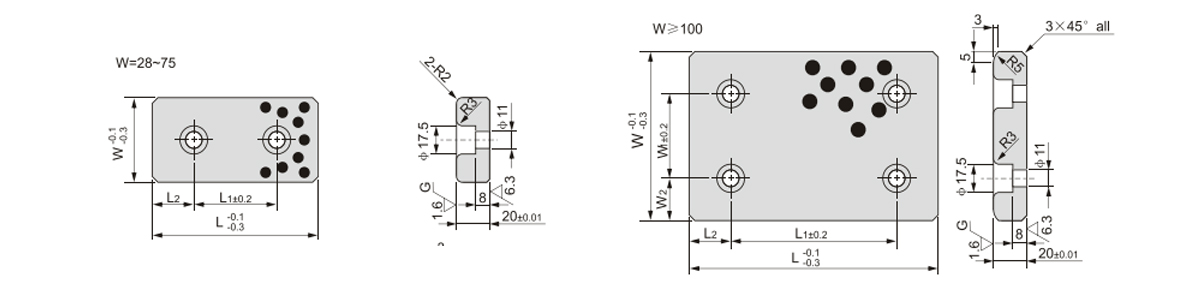

Standard No. W L W1 W2 L1 L2
JESW-28X75 28 75 - - 45 15
JESW-28X100 100 50 25
JESW-28X150 150 100
JESW-38X75 38 75 45 15
JESW-38X100 100 50 25
JESW-38X150 150 100
JESW-48X75 48 75 45 15
JESW-48X100 100 50 25
JESW-48X125 125 75
JESW-48X150 150 100
JESW-48X200 200 150
JESW-58X75 58 75 45 15
JESW-58X100 100 50 25
JESW-58X150 150 100
JESW-75X75 75 75 25
JESW-75X100 100 50
JESW-75X125 125 75
JESW-75X150 150 100
JESW-75X200 200 150
JESW-100X100 100 100 50 25 50 25
JESW-100X125 125 75
JESW-100X150 150 100
JESW-100X200 200 100
JESW-100X250 250 200
JESW-100X300 300 200 50
JESW-125X125 125 120 37.5 75 25
JESW-125X150 150 100
JESW-125X200 200 150
JESW-125X250 250 200
JESW-125X300 300 200 50
JESW-125X350 150 350 200 75
JESW-150X150 150 100 25 100 25
JESW-150X200 200 150
JESW-150X250 250 200
